Apogee Duet 3 Ultracompact 2x4 USB-C Audio Interface

Product image 1
Product image 2
Product image 3

Apogee Duet 3 Ultracompact 2x4 USB-C Audio Interface

Apogee Duet 3 Ultracompact 2x4 USB-C Audio Interface

Key Features
  • Musicians, Producers, Songwriters
  • USB-C Connectivity
  • 2 Mic / Line / Hi-Z Preamps
  • 1 Headphone Out, 2 Line/Monitor Outs
  • Transparent AD/DA Conversion
  • Bus or DC Powered / Mac, Windows, iOS
  • Phantom Power, Built-In Hardware DSP
  • Aluminum Base and Gorilla Glass Top
  • Comprehensive Software Control
  • Symphony ECS Plug-In Optional



Overview

Designed to be the audiophile-quality centerpiece of a mobile recording setup, the Apogee Electronics Duet 3is a 2x4 USB-C audio interface bringing Apogee's legendary sonic performance and intuitive operability to an ultracompact, elegant, and durable form factor for musicians, producers, and songwriters in pursuit of their best sound no matter where they are. While the low-profile exterior combines an aluminum base with a Gorilla Glass top to make it durable and attractive, the internals boast built-in hardware DSP to power the optional Symphony ECS Channel Strip plug-in for signal sculpting and polishing without bogging down your computer or iOS device.



Key Specs

Channels of I/O
Analog:
2 Inputs / 4 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x XLR 3-Pin Balanced Mic/Line Input (on Included Breakout Cable)
2x 1/4" TS Unbalanced Hi-Z Input (on Included Breakout Cable)
2x 1/4" TRS Balanced Line Output (on Included Breakout Cable)
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.15
Windows 10
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O
Analog:
2 Inputs / 4 Outputs
Built-In DSP
Yes
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
1x Knob
Signal Processing
Pad
No
Gain/Trim Range
Up to 65 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x XLR 3-Pin Balanced Mic/Line Input (on Included Breakout Cable)
2x 1/4" TS Unbalanced Hi-Z Input (on Included Breakout Cable)
2x 1/4" TRS Balanced Line Output (on Included Breakout Cable)
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power
48 V
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host)
1x USB-C (Power Input)
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Other I/O
1x Proprietary/Apogee Breakout Cable In/Out
Performance
Impedance
Headphone Outputs:
0 Ohms
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Latency
Zero-Latency Direct Monitoring
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.15 or Later / Windows 10 or Later
OS Compatibility
macOS 10.15
Windows 10
Required Hardware
Available USB-A Port or USB-C Port
Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power



What's in the Box:

  • Apogee Electronics Duet 3 Ultracompact 2x4 USB-C Audio Interface
  • USB-C to USB-A Cable
  • USB-C Cable
  • Breakout Cable

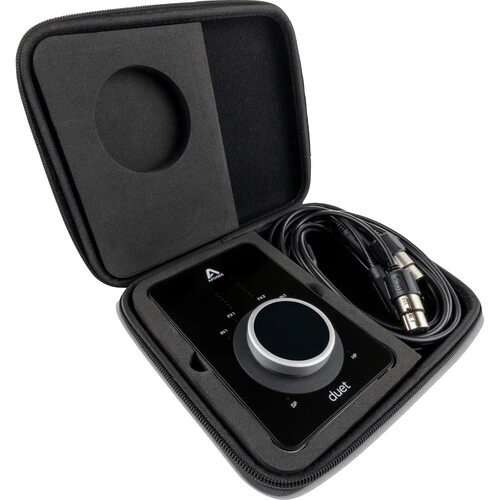

  • Travel Case
  • Limited 1-Year Manufacturer Warranty
