Blackmagic Design ATEM Mini Extreme

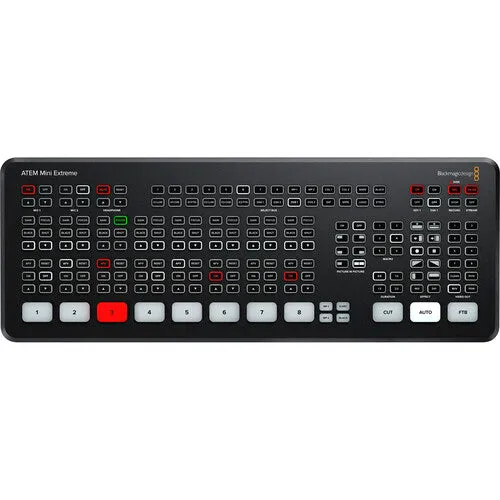

Product image 1

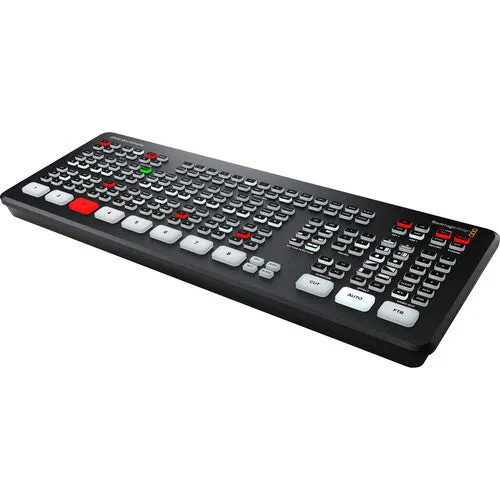

Product image 2
Product image 3

Blackmagic Design ATEM Mini Extreme

Blackmagic Design ATEM Mini Extreme

Key Features
  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Converter
  • Re-Sync on All HDMI Inputs
  • HD Multiview Output with up to 16 Views
  • Local and Software Switching
  • 4 x Upstream, 2 x Downstream Keyers





Overview

The Blackmagic Design ATEM Mini Extreme is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. This versatile switcher's eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

Key Specs

Available M/E Layers
9 M/E
Effect Types
2x DVE
4x Luma Key
4x Chroma Key
Graphics Memory
20 Images
Downstream Keys
2x Chroma, Luma, DVE
Generators
5x Pattern
2x Color
Audio Mixing
2-Channel Mixing
Processing
Switching Type
Pushbutton, Software
Processing Resolution
1080p
Input
Number of Video Input Sources
8
Video Inputs
8x HDMI
Input Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
HDMI: 2-Channel (per Input)
Output
Video Output Channels
2
Video Outputs
2x HDMI
Output Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs
1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output
HDMI: 2-Channel
Multiview Output
16-Way Multiview via HDMI
Connectivity
Other I/O
1x RJ45
2x USB-C
HDCP Support
No
IP Video
H.264:
1920 x 1080 Encoding
Transport Protocols
RTMP
Simultaneous Streams
1 Streams
Recording Modes
1920 x 1080p up to 60 fps (MP4)
Hardware
OS Compatibility
Computer: macOS 10.15 or Later / Windows 10 or Later
Mobile: Android/iOS
OS Compatibility
macOS 10.15
macOS 11.1 or Later
Windows 10
Processor
Not Specified by Manufacturer
Wi-Fi
No
Bluetooth
No
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 36 W
General
Operating Conditions
41 to 104°F / 5 to 40°C up to 70% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions
14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm
Weight
2.72 lb / 1.23 kg
Packaging Info
Package Weight
4.395 lb
Box Dimensions (LxWxH)
20 x 7.3 x 3"

What's in the Box:

  • Blackmagic Design ATEM Mini Extreme
  • 12 VDC Power Supply with International Plugs
  • Limited 1-Year Manufacturer Warranty
$1,116.13
