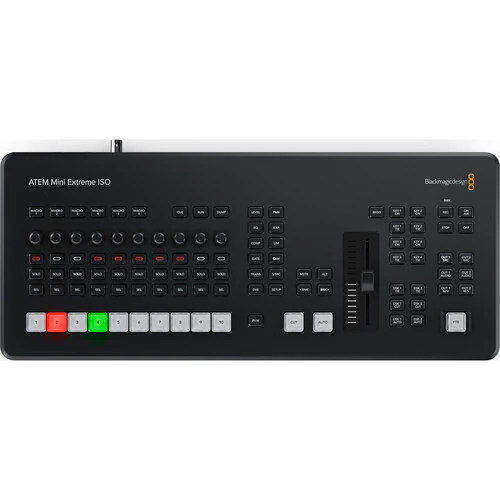

Blackmagic Design ATEM Mini Extreme ISO G2 Switcher

Product image 1
Product image 2

Blackmagic Design ATEM Mini Extreme ISO G2 Switcher

Blackmagic Design ATEM Mini Extreme ISO G2 Switcher

Key Features
  • 8-Channel HDMI Live Streaming Switcher
  • All-New Design, Supports up to 1080p60
  • 1G & 10G Ethernet Ports, CFexpress Slot
  • 3 Independently Assignable HDMI Outputs
  • 26-Input, 2-Channel Audio Mixer
  • Input Frame Rate & Format Converter
  • MADI Input, Analog Line/Mic XLR Inputs
  • HD Multiview Output with up to 16 Views
  • Dual USB-C & Thunderbolt Ports
  • 4 Upstream, 2 Downstream Keyers



Overview

The ATEM Mini Extreme ISO G2 Switcher from Blackmagic Design is an updated 8-input live production switcher for live streaming with an integrated control panel and advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it were a webcam over USB. New features include a totally redesigned keyboard with multiple knob controls, large NKK red/green source select buttons, a hardware fader, a CFexpress slot and Thunderbolt port for recording, and a more functional button layout.

Key Specs

Mix Effects
Available M/E Layers
9 M/E
Effect Types
2x DVE
4x Luma Key
4x Chroma Key
Graphics Memory
20 Images
Downstream Keys
2x Chroma, Luma, DVE
Generators
5x Pattern
2x Color
Audio Mixing
2-Channel Mixing
Processing
Switching Type
Pushbutton, Software
Processing Resolution
1080p
Input
Number of Video Input Sources
8
Video Inputs
8x HDMI
Input Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x XLR 3-Pin Mono Analog Female
1x BNC Female
Input Audio Format
Analog
Embedded Audio Input
HDMI: 2-Channel (per Input)
Output
Video Output Channels
2
Video Outputs
3x HDMI Female
Output Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs
1x 1/4" TRS Stereo Analog Female
Embedded Audio Output
HDMI: 2-Channel
Multiview Output
16-Way Multiview via HDMI
Monitor Output
3x HDMI
Connectivity
Other I/O
2x RJ45 LAN Input/Output
2x USB-C Output
1x Thunderbolt 3 Output
HDCP Support
No
IP Encoding/Decoding
IP Video
H.264:
1920 x 1080 Encoding
Transport Protocols
RTMP
Simultaneous Streams
1 Streams
Internal Recording
Recording Modes
1920 x 1080p up to 60 fps (MP4)
Hardware
OS Compatibility
macOS 14 or Later / Windows 10 or Later
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x Barrel (12 VDC ) Input
General
Operating Conditions
41 to 104°F / 5 to 40°C up to 70% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions
16.3 x 7.35 x 1.97" / 41.4 x 18.67 x 5 cm
Weight
4.09 lb / 1.86 kg



What's in the Box:

  • Blackmagic Design ATEM Mini Extreme ISO G2 Switcher
  • 12 VDC Power Supply
  • Limited 1-Year Manufacturer Warranty
