Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)

Product image 1
Product image 2
Product image 3
Product image 4

Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)

Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)

Key Features
  • 1x SD/HD/3G-SDI Input & 1 x Loop Output
  • 1 x HDMI Type A Output
  • DCI 2K SDI In/Out | 1080p60 HDMI Out
  • AC Power Supply & Socket Adapters
  • 3D LUT for Calibrating or Loop Output
  • SDI A/B Selection | USB Power
  • Embedded Audio
  • Compact, Rugged Design
  • LED Video & Power Signal Indicators



Overview

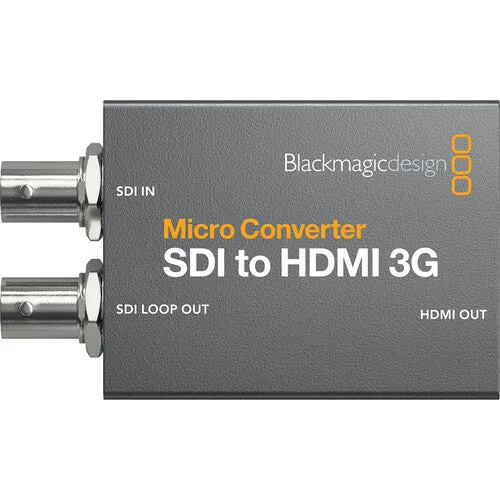

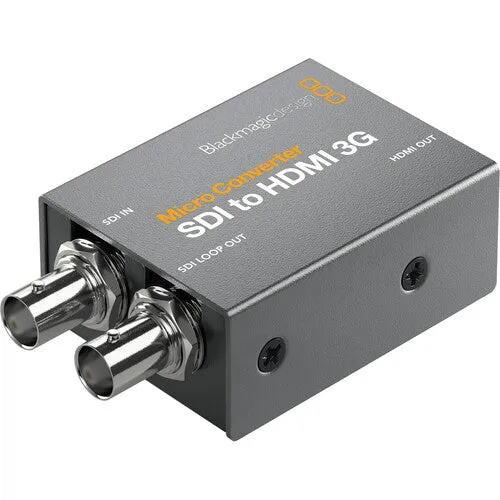

Super compact and rugged, the Blackmagic Design Micro Converter SDI to HDMI 3G enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

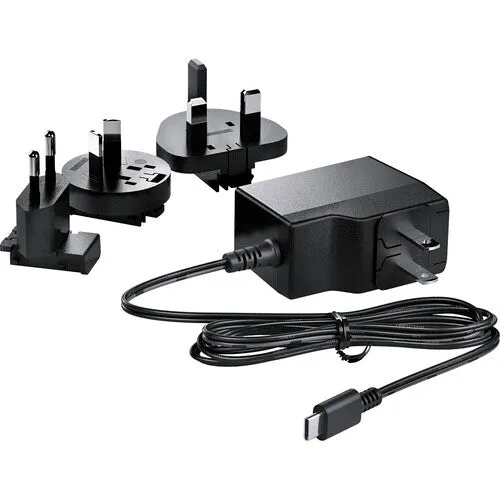

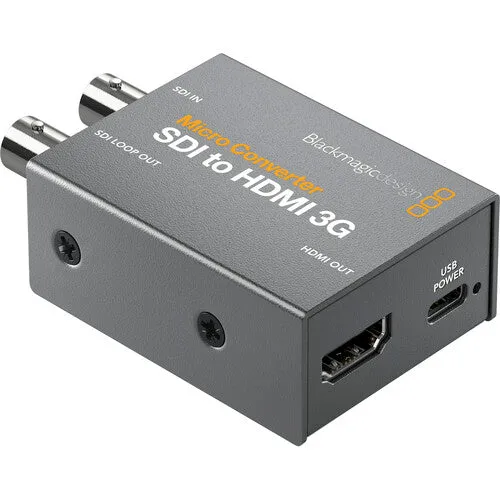

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Key Specs

Video Inputs
1x BNC (3G-SDI)
Audio Inputs
No
Video Outputs
1x BNC (3G-SDI) (Loop Output)
1x HDMI
Audio Outputs
No
Other I/O
1x USB-C Input
Expansion Slots
No
Format Support
Input Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio
HDMI/SDI
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support
Yes, Version 2.2
Hardware
Tally Light
Yes
OS Compatibility
macOS 10.14.15 or Later
Windows 10
Power
Power I/O
1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption
2.5 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight
5.29 oz / 150 g
Packaging Info
Package Weight
0.84 lb
Box Dimensions (LxWxH)
6.1 x 4.1 x 2.8"

What's in the Box:

  • Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)
  • 100-240 VAC Power Supply
  • 4 x Socket Adapter
  • Limited 3-Year Warranty
$100.48
