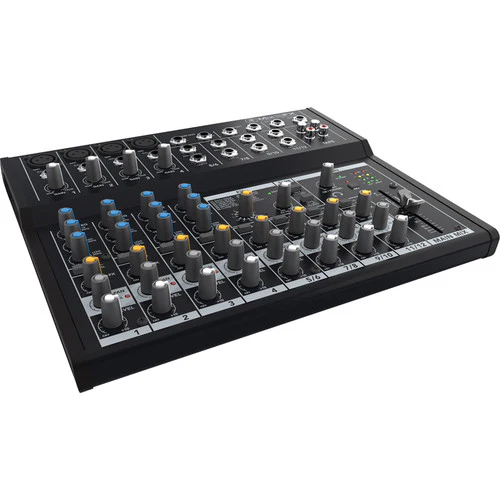

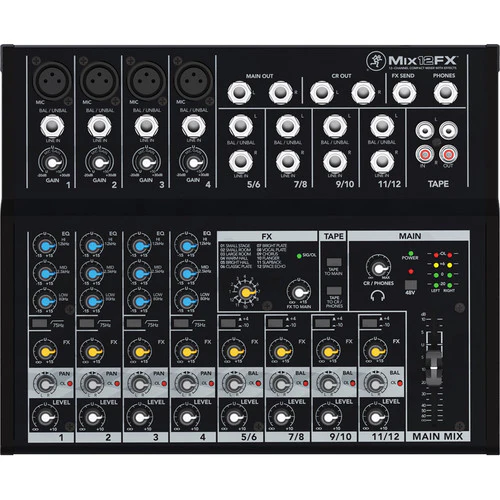

Mackie Mix12FX - 12-Channel Compact Mixer with Effects

Product image 1
Product image 2
Product image 3
Product image 4

Mackie Mix12FX - 12-Channel Compact Mixer with Effects

Mackie Mix12FX - 12-Channel Compact Mixer with Effects

Key Features
  • 4 Mic/Line Inputs with 3-Band EQ & HPF
  • 4 Stereo 1/4" Line Inputs
  • Stereo RCA Tape Inputs & Outputs
  • Pan, Level & Overload Indication
  • 48V for Condenser Mics
  • 12 FX - Reverbs, Choruses & Delays
  • Dedicated Stereo RCA Inputs
  • Headphone & Stereo Control Room Outs
  • Compact & Portable



Overview

The Mackie Mix12FX is a 12-channel compact mixer with built-in effects that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features four mic/line inputs with 48V phantom power and four stereo 1/4" line inputs, capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

Each of the four mic/line inputs is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, high-pass filter at 75 Hz, pan, level control and an LED overload indicator. The four stereo 1/4" line inputs each feature +4/-10dB operation, level control, balance control and also have an LED overload indicator.



Key Specs

Number of Analog Input Channels
12 (4 Mono / 4 Stereo)
Number of Mic Preamps
4
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing
Stereo FX Send / Stereo Main Mix
EQ
3-Band EQ
Built-In Effects
Yes
Wireless
No
Rack Mountable
No

Mixer
Number of Analog Input Channels
12 (4 Mono / 4 Stereo)
Number of Mic Preamps
4
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing
Stereo FX Send / Stereo Main Mix
Faders & Level Adjustment
8x Channel Knob
1x Master Fader
1x FX Knob
Meters
Main Meter:
1x 4-Segment LED

Signal Processing
Gain/Trim Range
-10 Up to +4 dB
Dynamic Processing
No
Sidechain Filters
No
EQ
3-Band EQ
EQ Parameters
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ
Yes
Filters
Low-Pass: 75 Hz, 18 dB/Octave
Solo/Mute
No
Built-In Effects
Yes

Performance
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
XLR Mic Input:
+19 dBu
Line Input:
+21 dBu
I/O Impedance
Mic Input:
3.8 Kilohms
Line Input:
≥ 10 Kilohms
Tape Output:
1 Kilohms
Headphone Output:
22 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Input to Output:
-85 dB at 1 kHz (20 Hz to 20 kHz)
Master Fader Off:
-75 dB at 1 kHz
CMRR
> -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
EIN
-122 dBu at Max Gain
Noise Floor
All Outputs:
-100 dBu (Master Level at -∞, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.25% (+4 dBu)

Connectivity
Analog Inputs
4x XLR 3-Pin Balanced/Unbalanced Mic Input
4x 1/4" TRS Balanced/Unbalanced Line Input
8x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs)
1x Stereo RCA Coaxial Unbalanced Stereo Tape Input (1 Stereo Pair)
Analog Outputs
2x 1/4" TRS Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Stereo Control Room Output (1 Stereo Pair)
1x 1/4" TRS Stereo Output
1x 1/4" Alt Send
1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair)
Phantom Power
No
Digital I/O
No
Wireless
No

Power
AC Input Power
120 VAC, 60 Hz
230 VAC, 50 / 60 Hz
Power Supply Output
18 VAC at 1000 mA

Physical
Rack Mountable
No
Dimensions
2.1 x 11.7 x 9.6" / 53 x 297 x 244 mm
Weight
3.7 lb / 1.7 kg

Packaging Info
Package Weight
4.7 lb
Box Dimensions (LxWxH)
14.5 x 13.2 x 3.4"

What's in the Box:

  • Mackie Mix12FX - 12-Channel Compact Mixer with Effects
  • Power Cord
  • Limited 1-Year Manufacturer Warranty
