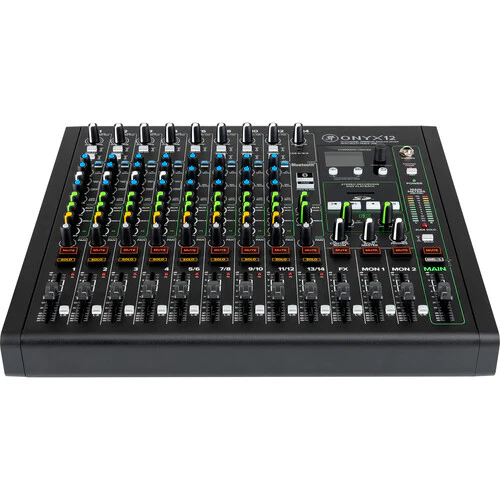

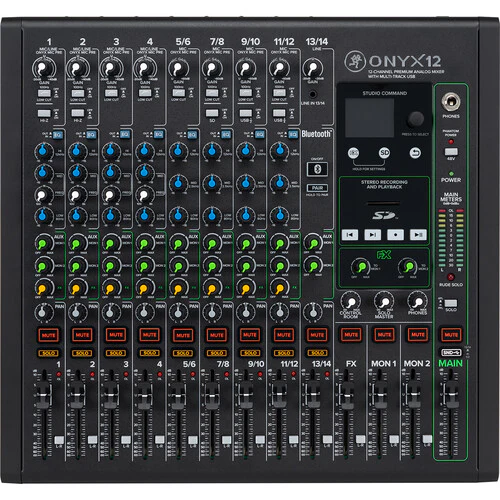

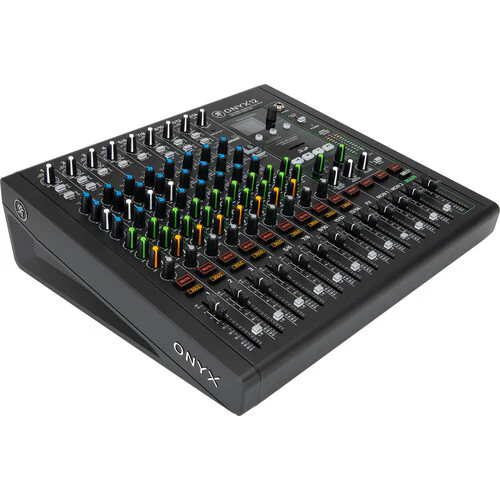

Mackie Onyx12 12-Channel Premium Analog Mixer with Multitrack USB

Key Features

Onyx Preamps
British-Style Perkins 3-Band EQ
Premium Analog Circuitry
Ultralow-Noise Design
Record & Playback to/from Mac/PC via USB
Studio Command Full-Color Display
Robust Digital Effects Engine
Dedicated Control Room Output
12-Segment Stereo Meters
Includes Powerful Software and Plug-Ins

Overview

Musicians, artists, engineers, and broadcast studios looking for a professional-quality compact mixing solution for live audio, home recording, and content creation should look no further than the Mackie Onyx12, a 12-channel mixer with 24-bit / 96 kHz 14x4 multitrack recording and high-gain Onyx preamps.

The Onyx12 is packed with features including British-style Perkins EQ, powerful DSP effects, a full-color display, and integrated stereo recording and playback from an SD card. The mixer provides an end-to-end ultralow-noise design, which delivers the sound quality professionals demand.

Key Specs

Number of Analog Input Channels	14 (8 Mono / 5 Stereo)
Number of Mic Preamps	8
Analog Output Channels	2x Stereo Master Output 2x Stereo Control Room/Monitor Output 2x Mono Aux Send Output 1x Mono FX Send Output 1x Stereo Headphone Output
Mix Routing	1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
EQ	3-Band Semi-Parametric (Mono Channels) 3-Band Shelving/Notch/Peak
Built-In Effects	Yes
USB I/O	1x USB-B (Audio Playback, Host Connection, Recording)
Max Multitrack Recording	14 Tracks
Rack Mountable	No

Mixer

Number of Analog Input Channels	14 (8 Mono / 5 Stereo)
Number of Mic Preamps	8
Analog Output Channels	2x Stereo Master Output 2x Stereo Control Room/Monitor Output 2x Mono Aux Send Output 1x Mono FX Send Output 1x Stereo Headphone Output
Mix Routing	1x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Faders & Level Adjustment	9x 2.4" / 60 mm Channel Fader 1x 2.4" / 60 mm FX Fader 2x 2.4" / 60 mm Bus/Subgroup Fader 1x 2.4" / 60 mm Master Fader
Meters	Main Meter: 2x 12-Segment LED
Meter Range	-30 dB to +20 dB Peak/Clip
Input Pad	No
Input Polarity	No
Dynamic Processing	No
Sidechain Filters	No
EQ	3-Band Semi-Parametric (Mono Channels) 3-Band Shelving/Notch/Peak
EQ Parameters	Mono Channels: High: ±15 dB at 12 kHz Mid: ±15 dB at 100 Hz to 8 kHz Low: ±15 dB at 80 Hz Stereo Channels: High: ±15 dB at 12 kHz Mid: ±15 dB at 2.5 kHz Low: ±15 dB at 80 Hz
Graphic EQ	No
Filters	Input Channels: 1x High-Pass: 100 Hz
Solo/Mute	Solo per Input Channel Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects	Yes

Digital Audio

Sample Rates	96 kHz
Bit Depth	24-Bit

Connectivity

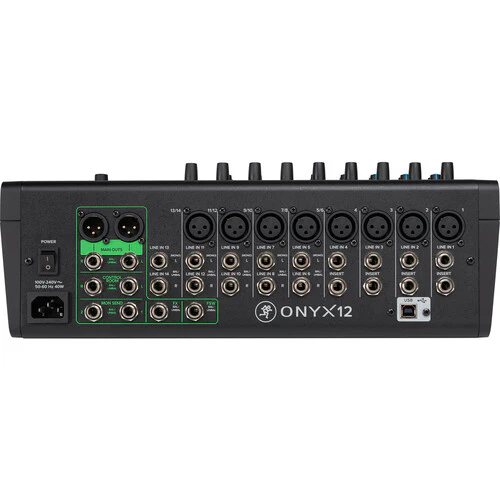

Analog Inputs	8x XLR 3-Pin Balanced Mic Input 4x 1/4" TRS Balanced/Unbalanced Line Input 4x 1/4" TRS Unbalanced Line Insert 2x 1/4" TRS Balanced/Unbalanced Hi-Z Input 10x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs) 1x 1/4" TRS Footswitch Input
Analog Outputs	2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair) 2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 2x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair) 2x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output 1x 1/4" TRS Balanced/Unbalanced FX Send
Phantom Power	+48 V (Applied to All Inputs)
Digital I/O	No
MIDI I/O	No
USB I/O	1x USB-B (Audio Playback, Host Connection, Recording)

Recording

Max Multitrack Recording	14 Tracks
Media Support	SD

Power

AC Input Power	100 to 240 VAC, 50 / 60 Hz
AC Power I/O	1x IEC Input
Power Consumption	40 W

Physical

Rack Mountable	No
Dimensions	14 x 14.8 x 4.5" / 355.6 x 375.9 x 114.3 mm
Weight	12.7 lb / 5.8 kg

Packaging Info

Package Weight	17.26 lb
Box Dimensions (LxWxH)	20 x 19 x 9.5"

What's in the Box:

Mackie Onyx12 12-Channel Premium Analog Mixer with Multitrack USB
Power Cord
Limited 1-Year Manufacturer Warranty
